Product Summary

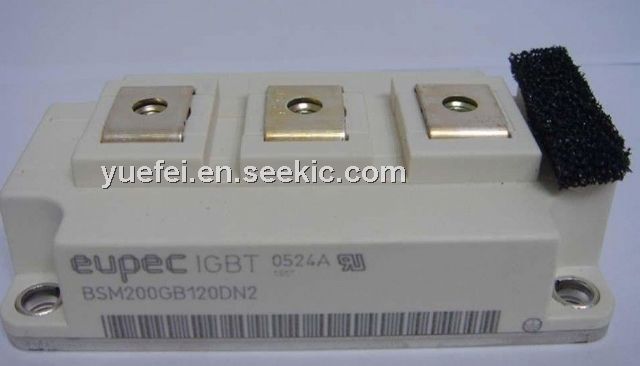

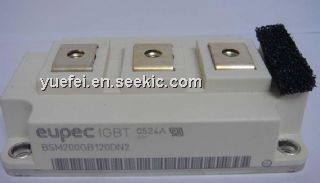

  • The BSM50GB120DN2 is an IGBT power module.

    • Parametrics

    BSM50GB120DN2 absolute maximum ratings: (1)Collector-emitter voltage, VCE: 1200 V; (2)Collector-gate voltage RGE = 20 kW, VCGR: 1200V; (3)Gate-emitter voltage, VGE: ± 20v; (4)DC collector current, IC: 78A when Tc=25℃; 50A when Tc=80℃; (5)Pulsed collector current, tp = 1 ms, ICpuls: 156A when TC = 25℃; 100A when TC = 80℃; (6)Power dissipation per IGBT, TC = 25℃, Ptot: 400W; (7)Chip temperature, Tj: + 150℃; (8)Storage temperature, Tstg: -55 to +150℃; (9)Thermal resistance, chip case, RthJC ≤ 0.3 K/W; (10)Diode thermal resistance, chip case RthJCD: ≤ 0.6K/W; (11)Insulation test voltage, t = 1min, Vis: 2500 Vac; (12)Creepage distance: 20 mm; (13)Clearance: 11mm.

    Features

    BSM50GB120DN2 features: (1)Half-bridge; (2)Including fast free-wheeling diodes; (3)Package with insulated metal base plate.

    Diagrams



    Image Part No Mfg Description Data Sheet Download Pricing
    (USD)    		 Quantity
    BSM50GB120DN2
    BSM50GB120DN2
    Infineon Technologies
    IGBT Modules 1200V 50A DUAL
    Data Sheet
    0-1: $44.28
    1-5: $42.07
    5-10: $39.85
    Image Part No Mfg Description Data Sheet Download Pricing
    (USD)    		 Quantity
    BSM50GAL120DN2
    BSM50GAL120DN2
    Infineon Technologies
    IGBT Modules 1200V 50A CHOPPER
    Data Sheet
    0-1: $35.08
    1-10: $31.58
    BSM50GB120DLC
    BSM50GB120DLC
    Infineon Technologies
    IGBT Modules 1200V 50A DUAL
    Data Sheet
    0-1: $36.45
    1-5: $34.63
    5-10: $32.81
    10-50: $30.13
    BSM50GB120DN2
    BSM50GB120DN2
    Infineon Technologies
    IGBT Modules 1200V 50A DUAL
    Data Sheet
    0-1: $44.28
    1-5: $42.07
    5-10: $39.85
    BSM50GB170DN2
    BSM50GB170DN2
    Infineon Technologies
    IGBT Modules 1700V 50A 500W HALF-BRIDGE
    Data Sheet
    0-1: $58.01
    1-10: $52.20
    BSM50GB60DLC
    BSM50GB60DLC
    Infineon Technologies
    IGBT Modules 600V 50A DUAL
    Data Sheet
    0-1: $25.46
    1-10: $22.92
    BSM50GD120DLC
    BSM50GD120DLC
    Infineon Technologies
    IGBT Modules 1200V 50A 3-PHASE
    Data Sheet
    0-1: $63.47
    1-10: $57.12
