Product Summary

The 2MBI200S-120 is an IGBT module. The applications of it are Inverter for Motor drive, AC and DC Servo drive amplifier, Uninterruptible power supply, Industrial machines, such as Welding machines.



Parametrics

2MBI200S-120 absolute maximum ratings: (1)Collector-Emitter voltage:1200V; (2)Gate-Emitter voltaga:±20V; (3)collector current: IC:300A or 200A, ICP:600A or 400A, -IC:200A, -ICP:400A; (4)Max. power dissipation:1500W; (5)Operating temperature:+150℃; (6)Storage temperature:-40 to +125℃; (7)Isolation voltage:AC 2500V

Features

2MBI200S-120 features: (1)High speed switching; (2)Voltage drive; (3)Low inductance module structure.

Diagrams

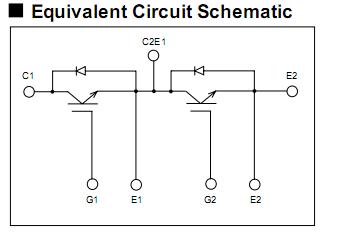

2MBI200S-120 circuit diagram
