Product Summary

Parametrics

Supports MII/7-wire SNI (Serial Network
Interface) interface
Supports 10/100Mbps operation
Supports half/full duplex operation
Support of twisted pair or Fiber mode output
IEEE 802.3/802.3u compliant
Supports IEEE 802.3u clause 28 auto negotiation
Supports power down mode
Supports operation under Link Down Power
Saving mode
Supports Base Line Winder (BLW) compensation

Features

Supports repeater mode
Speed/duplex/auto negotiation adjustable
3.3V operation with 5V IO signal tolerance
Low operation power consumption and only need
single supply 3.3V
Adaptive Equalization
25MHz crystal/oscillator as clock source
Multiple network status LED support
Flow control ability support to co-work with
MAC (by MDC/MDIO)
48 pin LQFP package

Diagrams

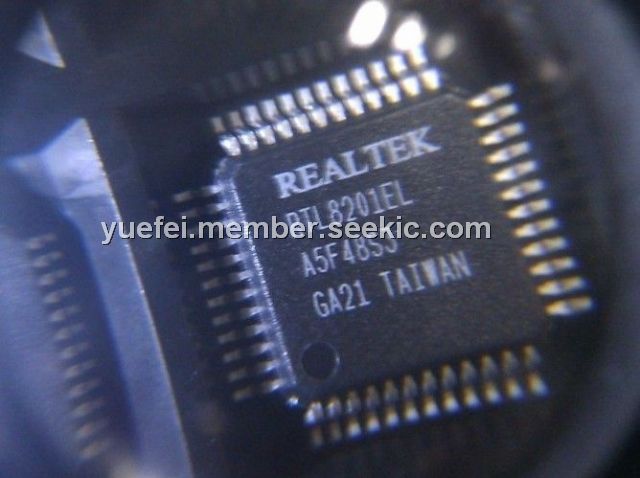

<FONT face=Verdana>The RTL8201BL is a single-port Phyceiver with an MII (Media Independent Interface)/SNI(Serial Network Interface). It<BR>implements all 10/100M Ethernet Physical-layer functions including the Physical Coding Sublayer (PCS), Physical Medium<BR>Attachment (PMA), Twisted Pair Physical Medium Dependent Sublayer (TP-PMD), 10Base-Tx Encoder/Decoder and Twisted<BR>Pair Media Access Unit (TPMAU). A PECL interface is supported to connect with an external 100Base-FX fiber optical<BR>transceiver. The chip is fabricated with an advanced CMOS process to meet low voltage and low power requirements. <BR>The RTL8201BL can be used as a Network Interface Adapter, MAU, CNR, ACR, Ethernet Hub, Ethernet Switch. Additionally<BR>it can be used in any embedded system with an Ethernet MAC that needs a twisted pair physical connection or fiber PECL<BR>interface to external 100Base-FX optical transceiver module. </FONT>
